Underground platforms for wheeled bins
Underground platforms for wheeled bins
Underground platforms for wheeled bins from Bunder Company are among the earliest systems used to bury waste collection. They conceal wheeled bins and make source-separated waste depositing easier and more hygienic.
Today, thanks to extensive field experience, underground hydraulic platforms are proven effective and durable.

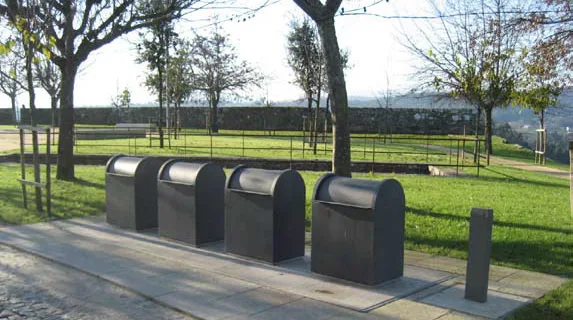

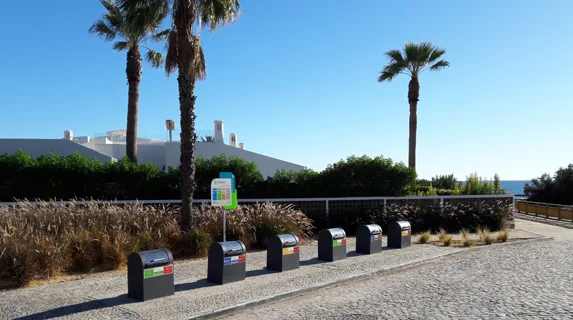

Subsurface recycling islands for wheeled underground bins are particularly suited to historic centres and areas with restricted vehicle access.
Bunder builds modular underground platforms for wheeled bins: for 2, 3 or 4 containers of 1,000 L or 1,700 L capacity, fitted with wheels.
Using these modules provides greater flexibility for installation in any location.
Containers on underground platforms feature external deposit towers in various designs. They are available in galvanised steel or stainless steel and can be configured for every source-separated waste fraction.
Operators can collect waste from platform-based underground containers using the same conventional rear-loading compactors already in service.
The underground wheeled-bin system is raised by a pantograph driven by two cylinders. Platform operation is ensured by an electro-hydraulic circuit.
Fluid for the circuit can be supplied by a pump integrated into the system or directly from the collection vehicle, if fitted with the appropriate connector.
All our underground platform bin systems can be fitted with hardware and software for access control and fill-level monitoring.
For use cases and requirements in your territory, see also Smart waste collection for municipalities and environmental operators.
Recessed platform for wheeled bins?
Integrate standard wheeled bins in a tidy streetscape: describe access, collection vehicles and pedestrian areas to protect.
